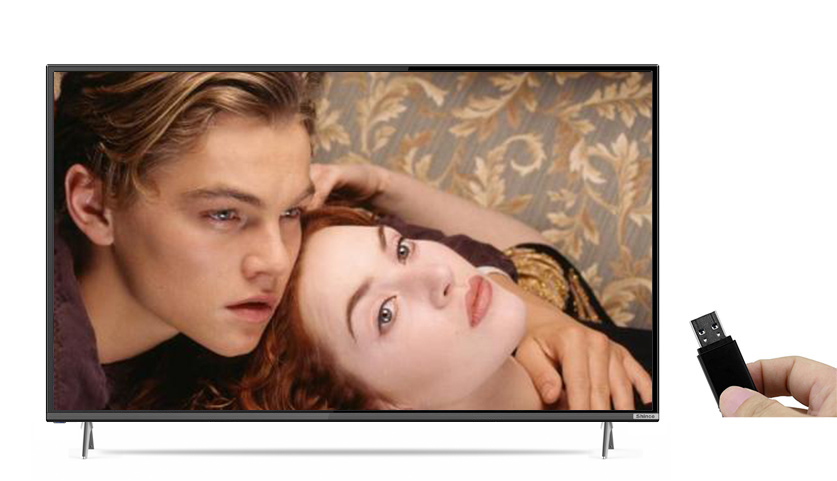

Ultra-narrow Frameless LED TV Design The narrow frameless LED TV integrative encapsulation and bright brushed metal material of the azerestone-color mlddle-frame that reveals an honorable fashion style of simple luxury. |
|
| 4 K Ultra High Definition Technology (Option) By using a High Definition LED TV with 4K resolution and 4 color high color gamut hard screen, TV is presenting the samerealistic perfect quality image from every angle. Even the edge of the pictureappears no color aberration. Hard screen has stable 4K liquid crystal molecular structure with no ghost orflicker phenomenon when touched. |
USB 3.0 (Option) The newly upgraded USB 3.0 LED TV brungs better high-bandwidth and high-speed transmission. Digital files display will never delay or block. |
|
| Strong Core & Full-speed Response The Strong in-built processing chips with comprehensively upgrades andincreases the speed, providing the most reliable and powerful processing capacity togames, videos and applications. |
Abundant Terminal Design
Upgrading RM/RMVB to 720P HD format to access all kinds of media devices used by the current family, such as DVD, mobile phone, digital camera, computer,USB flash drive and hard disk. The brand-new HDMI 2.0 LED TV can finish full nondestructive transmission of the HD audio frequency and 3D.
| Key features | Asia/Middle East | America | Europe |
| Design | |||
| Size | 23.6" 32" 40" 49" 50" 55" 65" | ||
| Type | LED backlight | LED backlight | LED backlight |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| TV System | |||
| DTV Reception | DVB-T/T2/C/S2 ,ATSC, ISDB, DMBT | ATSC/ISDB(Only Digit Country) | DVB-T/T2/C/S2 |
| Video System | PAL,SECAM | NTSC 3.58/4.43 | PAL,SECAM |
| Sound System | BG/DK/I(PAL), | M/N(PAL),M(NTSC) | BG/DK/I(PAL), |
| BG/DK(SECAM) | BG/DK(SECAM) | ||
| Terminais | |||
| RF IN | YES | YES | YES |
| HDMI input | YES | YES | YES |
| Component(YPbPr)input | YES | YES | YES |
| Composite(AV)input | YES | YES | YES |
| PC In (D-sub) | YES | YES | YES |
| PC Audio In (Mini Jack) | YES | YES | YES |
| SCART Input(Europe) | NO | NO | YES |
| CI Slot | NO | NO | YES |
| Composite Video Output | Optional | Optional | Optional |
| Audio Output L-R | Optional | Optional | Optional |
| Headphone Output | YES | YES | YES |
| USB | YES | YES | YES |
| Ehternet(LAN) | Optional | Optional | Optional |
| Power Supply | YES | YES | YES |
| Power Consumption(Stand-by) | <0.5w | <0.5w | <0.5w |
| Teletext/PAGE(EUROPE) | Optional | NO | YES |
| Caption(Subtitle) | Optional | YES | YES |
| Close Caption(LATIN AMERICA) | NO | YES | NO |
| V-Chip(USA) | NO | YES | NO |
| Child Lock(Parental Guidance) | NO | YES | NO |
| Packing information | Net dimension(mm) | Giftbox dimension(mm) | Loading quantity in container |
| 20GP 40HQ | |||
| 23.6" | 552*336*151 | 600*385*112 | 1107 2534 |
| 32" | 731*471*179 | 785*495*113 | 725 1570 |
| 40" | 917*584*216 | 1030*640*160 | 267 660 |
| 49" | 1108*705*239 | 1170*760*150 | 201 516 |
| 50" | 1130*722*257 | 1220*770*150 | 192 474 |
| 55" | 1248*793*260 | 1338*853*160 | 142 354 |
| 65" | 1461*908*260 | 1550*957*160 | 110 236 |
